Description

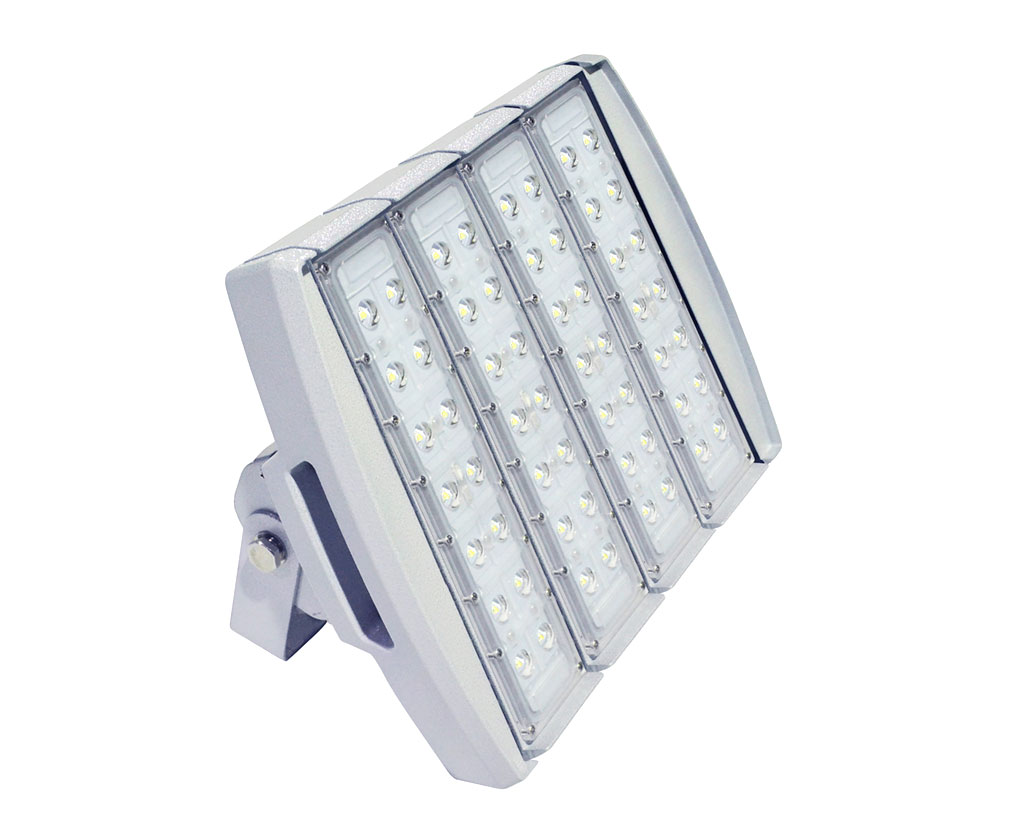

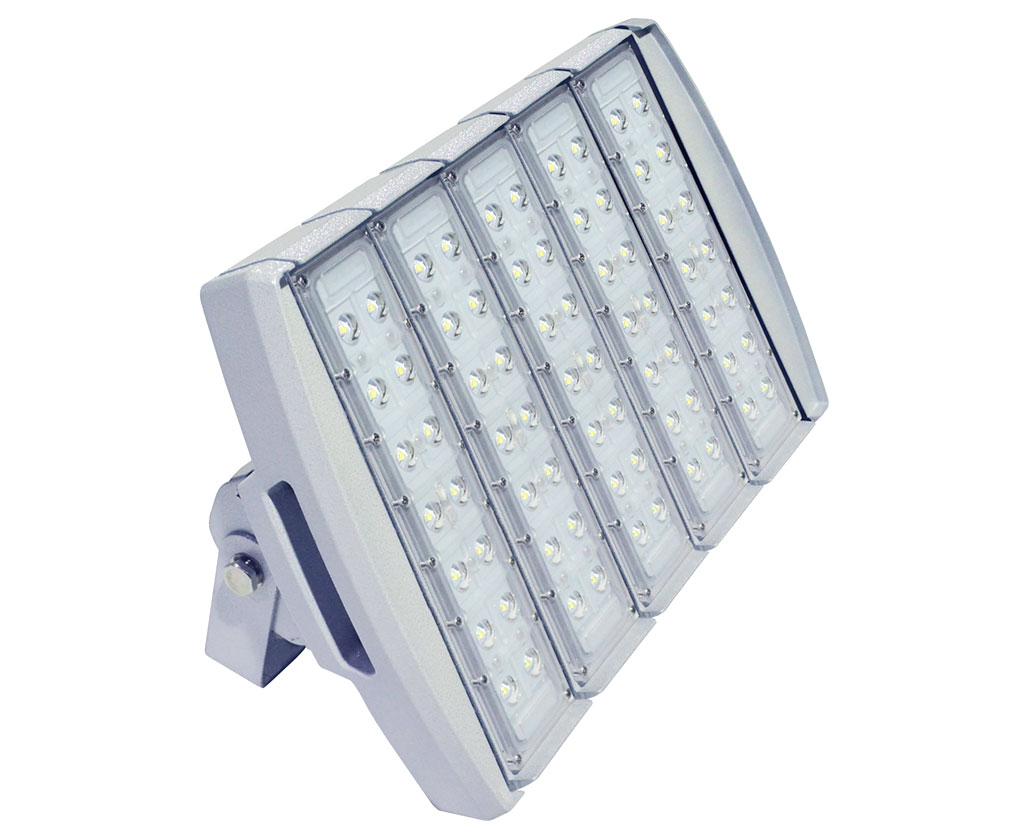

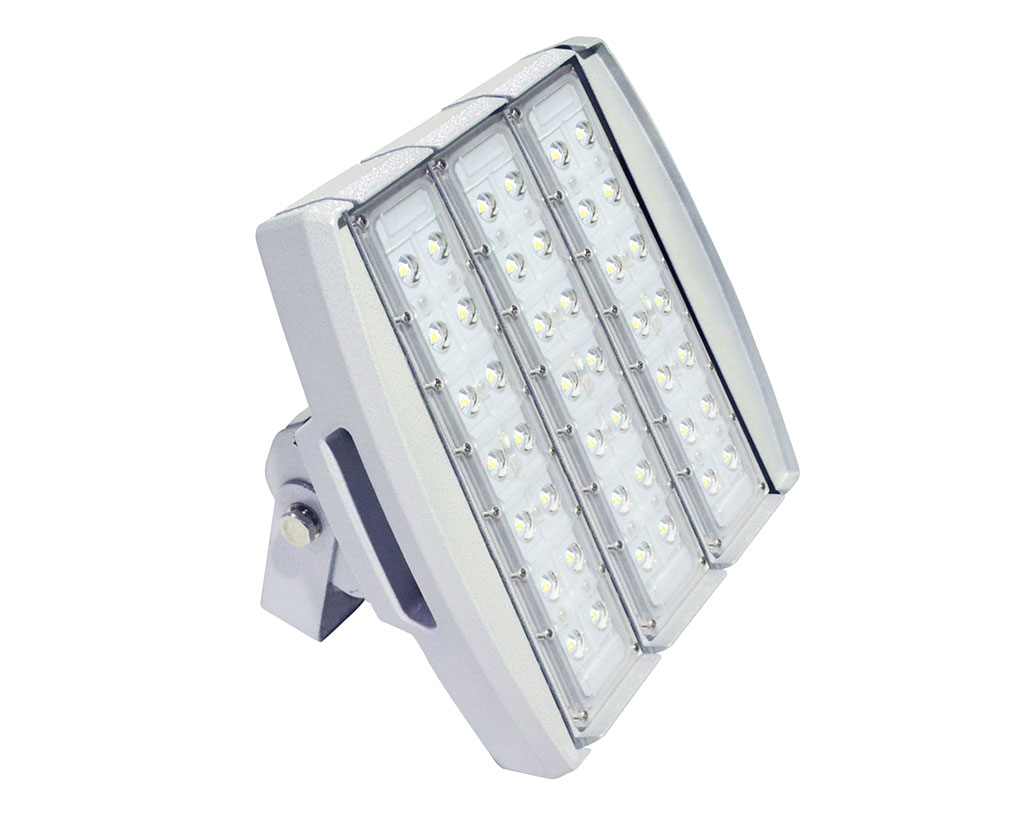

The Alset® tunnel LED fixture features rugged, low profile construction with superior optical control. Designed to deliver uniform and energy efficient illumination to improve visibility in tunnel and underpass applications with reduced glare. UL listed for wet locations. IP66 and 3G vibration rated. Available in three different lumen packages (12,000 lumens, 15,000 and 24,000 lumens).
Key Features
  • Instant on full brightness
  • ETL,DLC, RoHS, & FCC approved
  • Compatible with most lighting controls
  • LM79 and LM80 reports available
  • 0-10V DC dimming capability
  • Rated for wet locations
  • 10KV Surge protection
  • Operating temperature range -4F to 122F
  • 7 year warranty
Additional Information on the LED Tunnel Fixture
SPECIFICATIONS
AVAIL. OPTIONS
CONTACT US

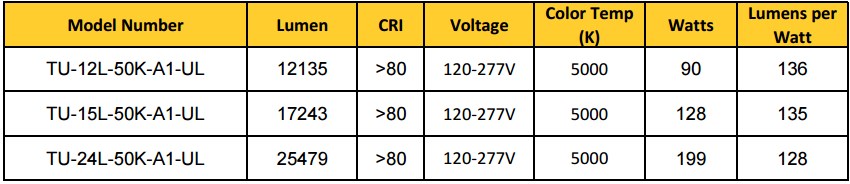

Technical Specifications
  • Input Voltage: 120-277V and 347-480V available
  • Lumens: 12,000, 17,000 and 25,000 available
  • Watts: 90, 128 and 199 watts
  • Efficacy: 128-135 lumens per watt
  • CCT: 5000K
  • CRI: >80
  • Polycarbonate lens

Applications:

  • Tunnels
  • Street Underpass
